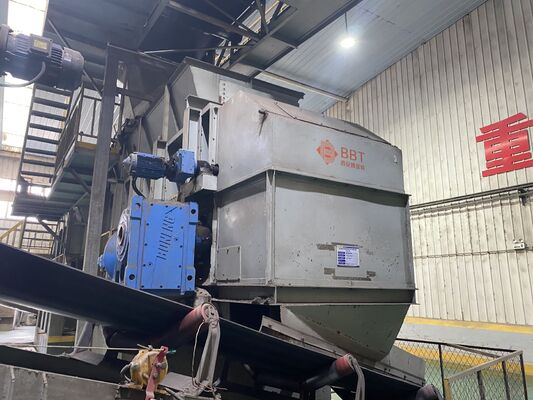

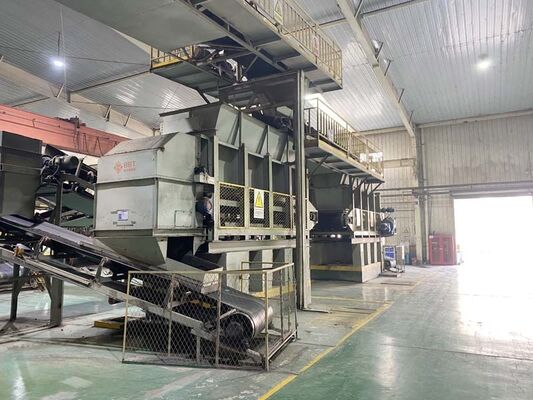

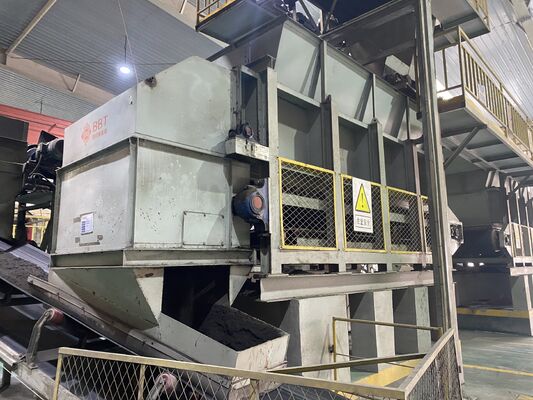

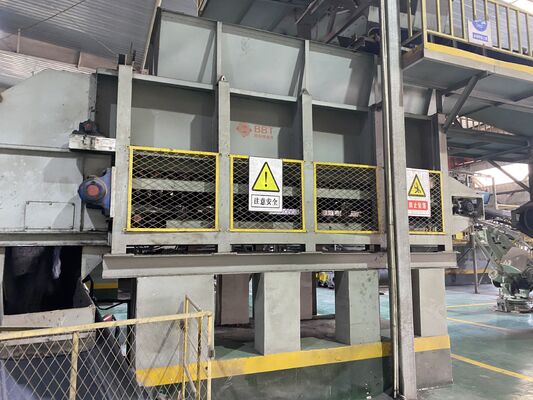

1. Function and usage for belt conveyor box feeder
a. Box feeder is used for uniform quantitative feeding, by adjusting the fixed discharge end, to control
the feed amount of raw materials, and can mix raw materials and internal combustion materials proportionally.
b. The feeding structure of the equipment is composed of motor, reducer, active roller, passive roller,
conveyor belt, etc. The power is driven by the output shaft of the reducer to drive the active roller to run.
The structure is compact, high efficiency and energy saving, the mechanical operation is convenient,
safe and reliable, and the operation is stable.
c. The conveying part is powered by the motor, which drives the reducer to reduce speed and increase
torque. The reducer drives the active roller to rotate and drives the conveyor belt to run. The toggle part
is driven by a reduction motor, the toggle shaft rotates, and the material bar will evenly discharge the mud.
2. Capacity and power for belt conveyor box feeder
| Item/Model |
TCNB800 |
TCNB1000 |
TCNB1200 |
| Capacity(m3/h) |
15-50 |
50-80 |
80-110 |
| Driving drum diameter (mm) |
500 |
500 |
500 |
| Belt width (mm) |
800 |
1,000 |
1,200 |
| Roller center distance (mm) |
4,500 |
4,500 |
4,550 |
| Main drive motor power (kw) |
5.5 |
7.5 |
7.5 |
| Feed bar transmission power (kw) |
3.0 |
4.0 |
5.5 |
| Weight (kg) |
4,800 |
5,700 |
6,100 |
3. Roller
Steel roller, both ends are equipped with plastic labyrinth sealing ring, grease will not leak,
bearing long service life; The steel roller with wall thickness of 3mm has stronger impact resistance.
At the same time, the use of domestic well-known brand bearings, reduce the rotation force,
more flexible, stable; Normal service life of 20000h On, generally do not need maintenance.
4. Circular conveyor belt
|
The belt conveyor belt without belt interface, belt operation process in the belt uniform force does not exist uneven force caused by belt cracking; Secondly, annular conveyor belt transport balance, the use of small elongation. The nylon material of the conveyor belt has the characteristics of thin belt body, high strength, impact resistance, adhesion between layers, excellent flexibility and long service life. |
5. Reducer
|
The reducer can be domestic famous brand Boneng, good quality, long service life; or SEW band or according to customer's requirement |
6. Questions and answers
1. What type of raw material will be fed?
Answer: dry clay, wet sticky clay, shale, marl, or recycled scraps).
Moisture content is critical—sticky materials require different belt and hopper designs.
2. What is the maximum particle size can be feeding?
Anwer: 200mm, 300mm clay or particles can be feed.
This determines the belt width and skirt board height.
3. What is the material's bulk density by Cubic meters and tons?
Answer: In clay feeding, it is 1 cubic meter=1.3 tons
4.What is the maximum feeding capacity?
Answer: 150 tons/h at the maximum and special capacity can be custom building.
5. What is the required hopper volume (storage capacity)?
Answer: Hopper capacity can be 10 m³ or 20 m³ or according to requirement.
This dictates how long the machine can feed without a refill from the loader.
6. Are there any height restrictions for loading?
(This affects the overall height of the box feeder and the loader clearance).
Answer: Yes, it is depended on what is the height of the workshop
7. How about a specific hopper lining?
Answer: Custom buildiing.
8. Can the hopper opening wide enough for the loader bucket?
Answer: Yes, it can be designed according to requirement.
9. Site & Integration for customer's checking and confirming:
· Where will the machine be installed? (Indoors or outdoors? This affects the need for weather covers).
· What is the available space? (Length, width, and height constraints).
· What are the electrical specifications? (Voltage, frequency, and phase available on site).
